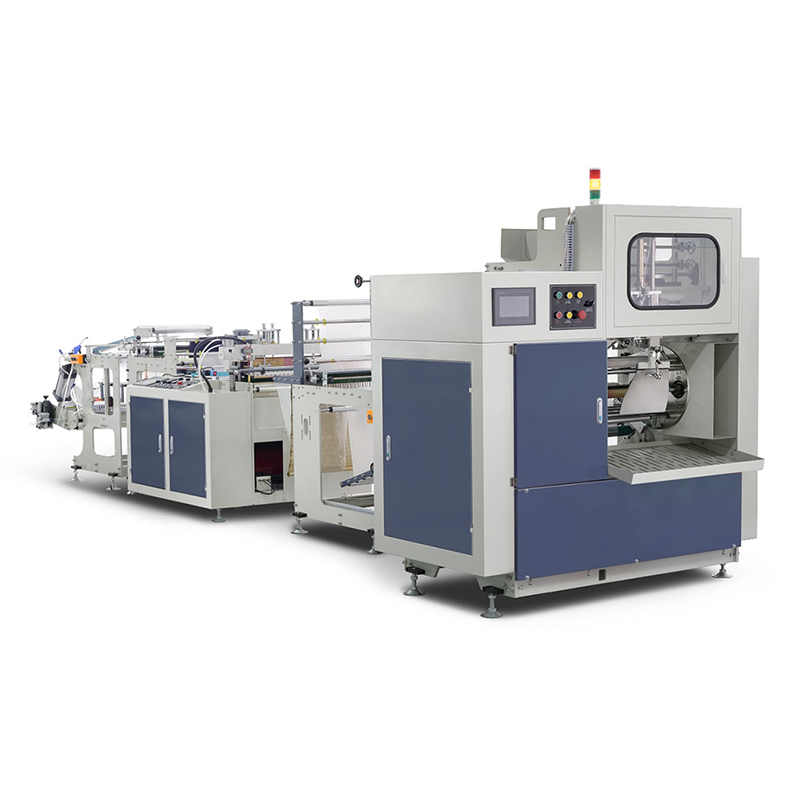

Mesin Pembuat Kantong Gulung Kecepatan Tinggi dengan Penggulung Otomatis SNW 450×2 (kantong gulung dengan core)

Mesin Pembuat Kantong Gulung Berkecepatan Tinggi Otomatis Penuh Dua Jalur dengan Inti dari Sinowin adalah solusi industri tugas berat kelas atas yang dirancang untuk produksi kantong gulung berinti secara terus-menerus dan tanpa henti. Dengan menggunakan sistem pelacakan dua jalur yang canggih, mesin berkinerja tinggi ini memproses dua gulungan film secara bersamaan, memberikan hasil produksi yang luar biasa dengan teknologi penyegelan panas dan pemotongan panas yang presisi. Terintegrasi penuh dengan mekanisme pengumpanan inti, penggulungan ulang, dan penggantian gulungan yang cerdas dan otomatis, mesin ini sepenuhnya menghilangkan tenaga kerja penggulungan manual, mengubah film mentah menjadi kantong gulung sempurna yang siap dijual pada inti kertas atau plastik dengan efisiensi yang tak tertandingi.

Bag Width

200-400mm×2

Max. Bag Length

300-800mm×2

Bag-cutting Thickness

0.005mm-0.03mm

Bag-cutting Speed

80-230pcs/min×2

Video Playback

Characteristic

* Dual-Lane Synchronized Mass Production

Features a heavy-duty dual-track mechanical layout that allows two independent film lines to be sealed, cut, and rolled at the same time, doubling your capacity and optimizing plant floor space.

* High-Speed Hot Cutting & Point-Break Perforation

Equipped with a specialized high-frequency heat sealing bar and a high-precision perforation blade, ensuring robust bottom seals and clean, easy-tear point-break lines at top speeds.

* Flawless Fully Automatic Roll & Core Changer

Integrates a fully automated rolling unit that executes core feeding, film wrapping, automatic cutting/splitting, and finished roll ejection without a single pause or manual intervention.

* Precision Multi-Axis Servo & PLC Integration

Driven by independent premium servo motors for unmatched tension and length control on both tracks, managed by an intuitive digital touchscreen PLC panel with real-time error diagnostics.

Use

* Supermarket Produce & Fresh-Keeping Roll Bags

The ultimate premier machinery choice for high-volume manufacturing of standard food-grade fruit and vegetable counter roll bags, meat packaging rolls, and deli sacks.

* Household & Commercial Core-Rolled Garbage Bags

Perfect for the continuous, rapid mass-production of high-demand trash liners on cores, drawstring kitchen garbage rolls, and janitorial waste sacks.

* Specialized Medical & Industrial Disposable Rolls

Ideal for manufacturing medical-grade disposable waste bag rolls, continuous protective equipment covers, and industrial small-width flat bag rolls.

Main Technical Parameters

型号	Model	SNW-GS450×2
制袋宽度	Bag Width	200-400mm×2
最大制袋长度	Max. Bag Length	300-800mm×2
制袋厚度（单层）	Bag-cutting Thickness (one layer)	0.005mm-0.03mm
制袋速度	Bag-cutting Speed	80-230pcs/min×2
主电机功率	Main Motor	2.0KW
长度误差	Error in Length	±1mm
驱动系统	Driving System	3.0KW ×2 Servo driving
换卷模式	Roll-change mode	Automatic (Separate left and right, count independently)
袋子形式	Bag type	With core
成品卷直径	Max Diameter of final roll	100mm
成品卷宽度	Width of final roll	150-400mm
其他	Other	With EPC
机器重量	Weight	2500KG
外形尺寸	Dimension	7.0m×2.2m×1.9m
