Mesin Pembuat Kantong Kertas Dasar Persegi SINOWIN NWFD-450
Main Feature
1.Using Willon touch screen man-machine interface, the operation function is clear at a glance, easy to control
2.Adopt the Japanese original Mitsubishi motion controller, through the integration with the optical fiber, operation stability
3.Japanese Mitsubishi servo motor with German Schick color standard eye correction, accurate tracking printing bag size
4.The raw material loading and unloading adopts hydraulic dynamic lifting structure, and the unwinding adopts automatic constant tension control.
5.The raw material correction adopts servo motor to reduce the adjustment time of paper roll alignment.
Pick The Appropriate Size Paper Bag Depending On Your Ultimate Desideratum.
From commercial shopping carriers to delicate bakery window bags, SINOWIN has the perfect size configuration for your production needs. With a diverse variety of width options and bottom styles to choose from, your factory can easily create the ideal bag for any industrial application.
SNW-FD220 Square Bottom Paper Bag Making Machine
This machine is engineered for manufacturing small to medium paper bags with a flat and square bottom. It is perfectly suited for a vast range of high-volume applications, including boutique retail, quick-service food chains, and premium gift packaging.
SNW-FD330 Square Bottom Paper Bag Machine
This machine is engineered for producing small to medium paper bags with a flat square bottom and an integrated die-cut handle design. It is perfectly suited for a comprehensive range of industrial applications, including boutique retail, food service, hygienic medical packing, and other specialized markets. It serves as the ultimate finishing touch to maximize the efficiency of your packaging line.
SNW-FD450 Square Bottom Paper Bag Machine
This machine can engineer bags with a maximum bottom width of 450mm and is specially designed to manufacture medium to large size paper bags with ultimate stability. These industrial-scale bags are mainly used to pack diverse objects which have a bigger cubic volume and heavyweight requirements.
SNW-FD450B Square Bottom Paper Bag Machine
This machine is the upgraded version of our classic SWFD-450 machine. It shares the exact same processing width and can manufacture the same dimensions of paper bags, but it operates at a significantly faster speed and is much easier for your staff to use.
One SINOWIN NWFD-450 Square Bottom Paper Bag Making Machine With Multiple Choices.
From simple industrial packing packaging to complex retail branding projects, the NWFD-450 square bottom paper bag-making machines can help you create a better, more premium product for your clients.
two color printing unit
This equipment can be equipped with an inline 2-color flexographic printing unit for printing customized patterns directly onto the paper bags.
four color printing unit
An optional inline 4-color flexo printing unit is available for this machine, enabling the seamless application of customized graphics and full-color branding onto the paper bags.
hot glue melt machine
The hot melt glue system achieves fast-curing, leak-proof, and seamless bonding between the paper bag and the plastic window film during high-speed production.
Main Technical Parameters
机器型号 Model | SNW-FD450 |
切袋长度 Cutting Length | 270-530mm |
纸袋宽度 Paper Bag Width | 210-430mm |
袋底宽度Bottom width | 90-180mm |
纸袋厚度Paper bag thickness | 80-150g/㎡ |
机械速度Mechanical speed | 30-220pcs/min |
纸袋速度Paper bag speed | 30-150pcs/min |
纸卷宽度Paper roll width | 660-1290mm |
纸料直径Paper diameter | 1300mm |
纸料内径Inner diameter of paper | 76mm |
整机功率Total power | 380V 3phase 4line 15kw |
整机气压The whole machine pressure | 0.5MPa-0.8MPa |
整机重量Total Weight | 9000kg |
整机尺寸Overall size | 10000*3800*2200mm |
Flow Chart
Product Video
Product Showcase
Sample Picture
A Vast Variety Of Paper Bags, Each With Its Own Distinct Set Of Features.
Each SINOWIN machine is capable of producing a rich variety of paper bags with different structural features. Made entirely with eco-friendly and sustainable materials, these beautiful options are just a few of the premium choices that can be seamlessly produced on our production lines.
square bottom paper bag with four color
square bottom paper bag with two color
sqaure bottom paper bag with twisted handle
square bottom paper bag with flat handle
square bottom paper bag with window
square bottom paper bag with d cutter
Related Products
-

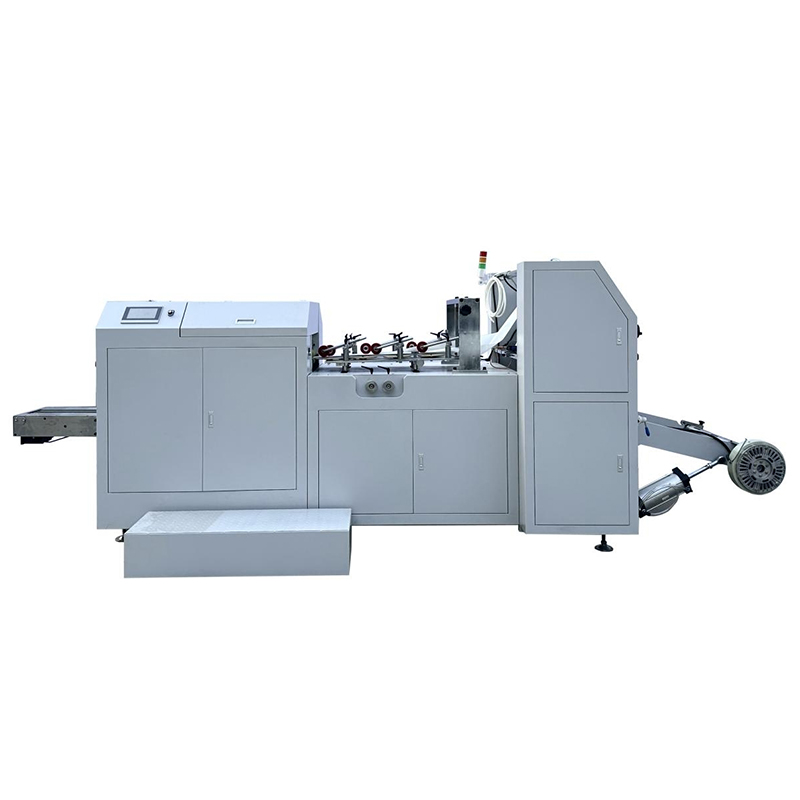

Mesin Pembuat Kantong Kertas Dasar V SNW-JD260B
Automatic high-speed V Bottom Paper Bag Machine by the drum original color paper or printed drum paper such as kraft paper, striped kraft paper, oily paper, food shower film paper, medical paper and other paper roll material bag making process by thorn hole, glue, above, edge formation, interruption, bottom, paste bottom, finished bag output completed.This machine operation is more convenient, more efficient and more stable, is the ideal equipment for the production of various different paper bags, leisure food bags, bread bags, dried fruit bags and other environmentally friendly paper bags.
Read more -

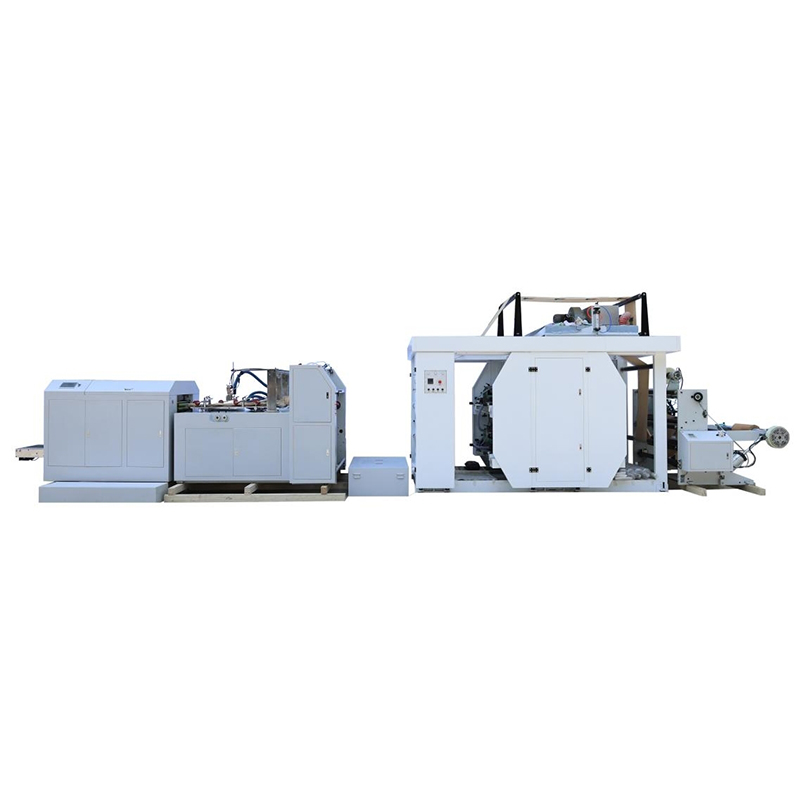

Mesin Pembuat Kantong Kertas Dasar V Kecepatan Tinggi dengan 4 Warna SNW-JD350
