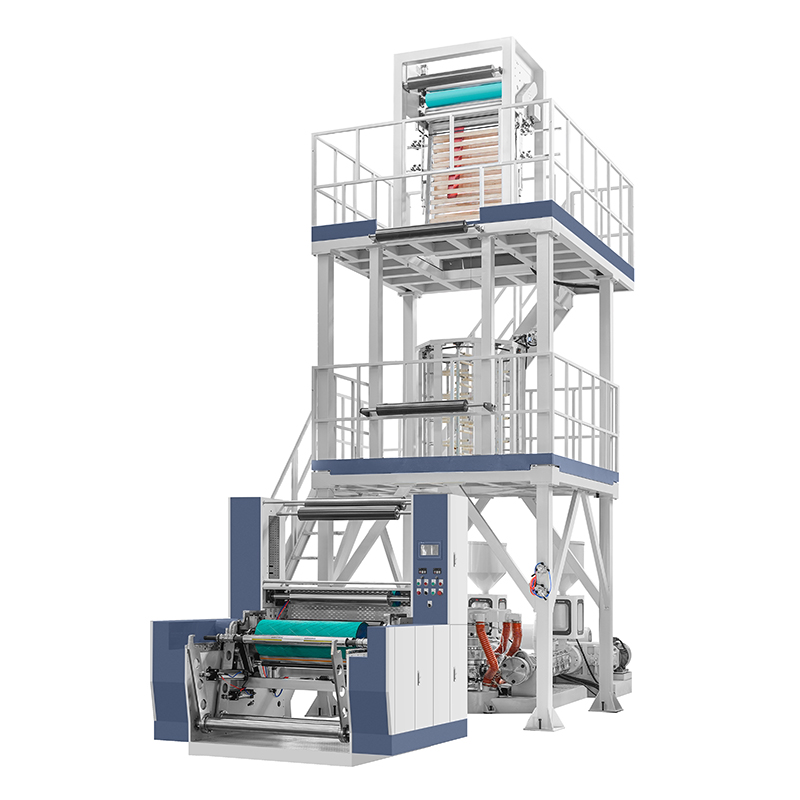

ABA Series High Speed Three Layer Co-extrusion HDPE Film Blowing Machine

Utilizes a 2-extruder system to produce a 3-layer film (A-B-A). Enables up to 50%-70% recycled material or calcium carbonate (CaCO3) usage in the middle B-layer to drastically reduce raw material costs.

Material

Film Width

Max Output

Film Thickness

Video Playback

Characteristics

* Smart ABA 3-Layer Cost Saving Structure

* High-Speed Extrusion & Superb Output

Equipped with optimized screw designs and high-efficiency heating elements that ensure excellent material homogenization, stable output, and high-speed production.

* Superior Film Strength & Toughness

Compared to traditional single-layer machines, the co-extruded ABA film structure offers significantly higher puncture resistance, enhanced tensile strength, and better sealing properties.

* Energy-Saving & Intelligent Operation

Features inverter-controlled motors and a centralized control panel for precise temperature monitoring, reduced electricity consumption, and user-friendly operation.

Use

* High-Strength T-Shirt Bags & Shopping Bags

Perfect for producing mass-market supermarket t-shirt bags, carrier bags, and boutique vest bags with high tear resistance.

* E-Commerce Mailers & Courier Bags

Ideal for manufacturing heavy-duty shipping bags, poly mailers, and express packaging that require strong puncture resistance and absolute opacity.

* Industrial & Garbage Bags

Widely used for producing heavy-duty trash bags, industrial packing liners, and construction protective sheets.

* Agricultural & General Purpose Packaging

Suitable for producing high-output mulch films, shrink films, and daily-use plastic consumer packaging.

Main Technical Parameters

	SNW-ABA600MM	SNW-ABA800MM	SNW-ABA1000MM	SNW-ABA1200MM
薄膜宽度Film Width	200-600mm	200-800mm	500-1000mm	600-1200mm
单层薄膜厚度 One Layer Film Thickness	0.005-0.045mm(HD) 0.01-0.1mm(LD)	0.005-0.045mm(HD) 0.01-0.1mm(LD)	0.005-0.045mm(HD) 0.01-0.1mm(LD)	0.005-0.045mm(HD) 0.01-0.1mm(LD)
最大产量Max Output	50-60KG/H	70-80KG/H	90-100KG/H	110-120KG/H
螺杆直径Screw Dia	Φ40mm × 2 (metallic)合金	Φ45mm× 2(metallic)合金	Φ50mm× 2(metallic)合金	Φ55mm × 2 (metallic)合金
螺杆长径比Screw Length Ratio	30:1	30:1	30:1	30:1
螺杆转速Screw Speed	10-150rpm(high speed)	10-150rpm(high speed)	10-140rpm(high speed)	10-140rpm(high speed)
冷却风机Cooling Fan	250W × 2 × 2	250W × 2 × 2	250W × 2 × 2	370W × 3×2
主电机Main motor	11KW × 2 with inverter	15KW × 2 with inverter	18.5KW × 2 with inverter	22KW× 2 with inverter
齿轮箱Gear Box	133× 2	146× 2	173 × 2	180 × 2
鼓风机Blower	3.0KW	4.0KW	5.5KW	7.5KW
模头Die Head(三层)	HDΦ50mm /LDΦ120mm	HDΦ80mm/LDΦ160mm	HDΦ100mm/LDΦ220mm	HDΦ120mm//LDΦ250mm
风环 Air Ring	Φ700(double air lip)双风口	Φ700(double air lip)双风口	Φ800(double air lip)双风口	Φ800(double air lip)双风口
电压Machine Voltage	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)	380V 50HZ/220V 60HZ (can be customizable)
总功率Total Power	48KW	58KW	65KW	78KW
机器重量Machine weight	3.0T	4.0T	5.0T	6.0T
机器尺寸Machine Dimension	L5.8W2.4H4.8m	L5.8W2.6H5.2m	L6.0W2.8H5.2m	L6.2W3.0H6.5mm

	SNW-ABA1500MM
薄膜宽度Film Width	600-1500mm
单层薄膜厚度 One Layer Film Thickness	0.005-0.045mm(HD) 0.01-0.1mm(LD)
最大产量Max Output	120-130KG/H
螺杆直径Screw Dia	Φ60mm× 2 (metallic)合金
螺杆长径比Screw Length Ratio	30:1
螺杆转速Screw Speed	10-140rpm(high speed)
冷却风机Cooling Fan	370W ×3 × 2
主电机Main motor	30KW × 2 with inverter
齿轮箱Gear Box	200× 2
鼓风机Blower	7.5KW
模头Die Head	HDΦ150mm/LDΦ350mm
风环 Air Ring	Φ1000(double air lip)双风口
电压Machine Voltage	380V 50HZ/220V 60HZ (can be customizable)
总功率Total Power	98KW
机器重量Machine weight	6.5T
机器尺寸Machine Dimension	L6.5W3.0H6.5m
